Highlight:
flanged stainless steel floating ball valve
, flanged forged steel floating ball valve
, industry forged steel floating ball valve
Product Name: |
Flanged Stainless Steel Floating Ball Valve For Pharmaceutical Industry |
Key Words: |
Ball Valve |
Power: |
Hydraulic, Solenoid, Pneumatic, Manual, Electric Power+manual |
Media: |
Oil, Water, Gas, Air, Liquid |
Temperature: |
Medium Temperature, Normal Temperature, High Temperature,Low Temperature |
Pressure: |
150/300/600/900/1500/2500LB |
Connection: |
Flanged |
Application: |
General, Oil And Gas, Petrochemical And Chemical Industry, Water And Wastewater,HVAC, C |
Body Material: |
Stainless Steel |
Warrantly: |
18 Months |

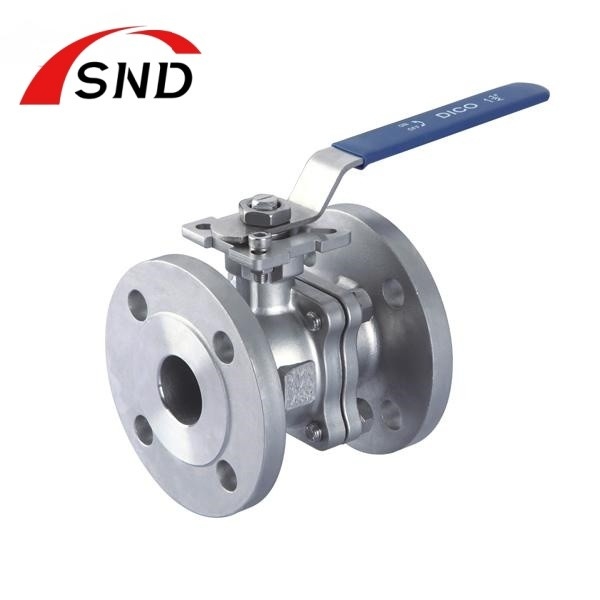

Flanged Stainless Steel Floating Ball Valve For Pharmaceutical Industry
Ball Valve Specifications
Normal pressure: 150/300/600 LB
Strength test: PT 3.0/7.5/15 MPa
Seal test: 2.2/5.5/11 MPa
Gas seal test: 0.6 Mpa
Valve body material: WCB(C), CF8(P), CF3(PL), CF8M(R), CF3M(RL)
Suitable medium: Water, steam, oil, nitric acid, acetic acid
Suitable temperature: -29 ℃ -180 ℃
Ball Valve Materials of main parts
| Material name |
Carbon steel |
Stainless steel |
| Body |
A216 WCB |
A351 CF8 |
A351 CF8M |
| Bonnet |
A216 WCB |
A351 CF8 |
A351 CF8M |
| Ball |
A276 201/A276 304/A276 316 |
| Stem |
2Cr13 |
A276 304 |
A276 316 |
| Seat |
PTFE,RPTFE |
| Gland Packing |
PTFE/Flexible graphite PTFE/Flexible Graphite |
| Gland |
A216 WCB |
A315 CF8 |
A315 CF8M |
| Bolt |
A193-B7 |
A193-B8 |
A193-B8M |
| Nut |
A194-2H |
A194-8 |
A194-8M |
American Standard Ball Valve Overview
The American standard ball valve is a versatile valve designed for cutting off, distributing, and redirecting pipeline flow. Unlike flange gate valves, its closure mechanism is a rotating sphere, making it highly efficient and reliable. These valves are typically installed horizontally and come in two-piece and three-piece designs, widely used across various industries.
Company Profile
SND has been producing and selling metal goods for about 20 years.By using manufacturing techniques including sand casting, lost wax casting, lost foam casting, and precision machining, the company has been supplying goods made of materials like cast iron, steel, stainless steel, aluminum, etc. Additionally offered are surface finishing and assembly services.
Our company has successfully created products in a variety of industries, including automotive, rail transportation, agricultural machinery, chemical, energy, electricity, water, air compressor, and construction, thanks to our consistent efforts over the past few years.
Our factories' ISO9001-accredited quality control systems guarantee a consistent and dependable quality for each and every component.
Spectrometer, ultrasonic, magnetic, permeability, elongation, tensile/yield strength, and other inspections are carried out as part of routine production procedures.
