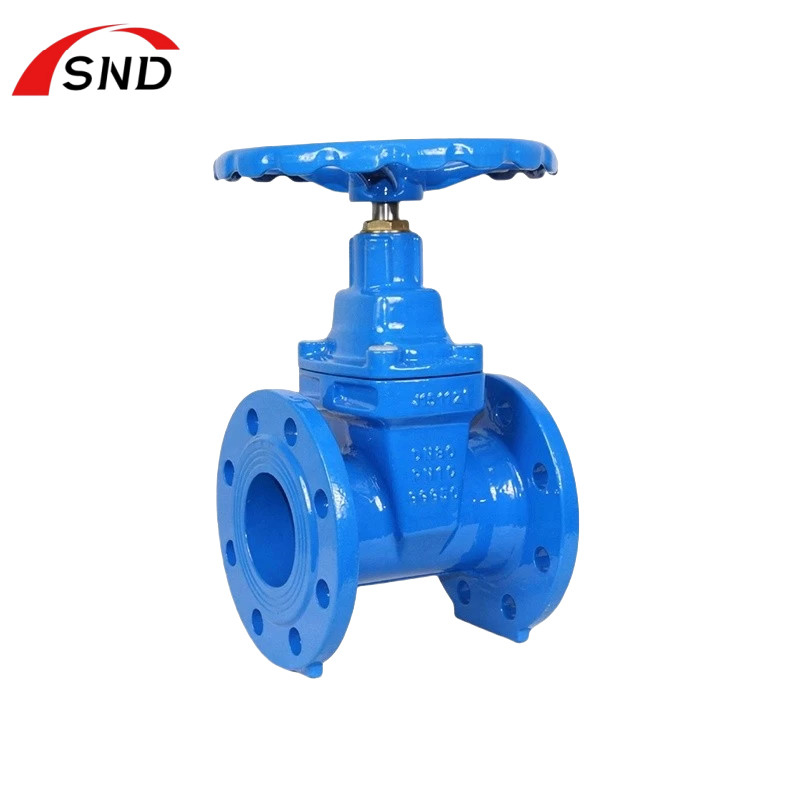

Cast Iron Gate Valves For Industrial Chemical Industry

Name: Cast Iron Gate Valves For Industrial Chemical Industry
Brand: Handan Shengnada New Material Technology Co., Ltd.
SKU: Gate valve
Price: 500.20 USD
Availability: InStock

Product Details

Place of Origin: Zhejiang, China

Brand Name: SND FOUNDRY

Certification: ISO / CE

Model Number: Gate valve

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Wood Box

Delivery Time: 20 days

Payment Terms: L/C, T/T

Supply Ability: 100,000 pcs.

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                industrial cast steel valve, industrial y type check valve, industry cast steel valve


Product Name:	Cast Iron Gate Valves For Industrial Chemical Industry	Key Words:	Gate Valves
Power:	Hydraulic, Solenoid, Pneumatic, Manual, Electric Power+manual	Media:	Oil, Water, Gas, Air, Liquid
Temperature Of Media:	Medium Temperature, Normal Temperature, High Temperature, Low Temperature, -10-200℃	Body Material:	Cast Iron
Standard:	API/DIN/JIS OR Nonstandard	Pressure:	High Pressure, Medium Pressure, Low Pressure
Connection:	Flanged	Warranty:	18 Months

Product Name:	Cast Iron Gate Valves For Industrial Chemical Industry
Key Words:	Gate Valves
Power:	Hydraulic, Solenoid, Pneumatic, Manual, Electric Power+manual
Media:	Oil, Water, Gas, Air, Liquid
Temperature Of Media:	Medium Temperature, Normal Temperature, High Temperature, Low Temperature, -10-200℃
Body Material:	Cast Iron
Standard:	API/DIN/JIS OR Nonstandard
Pressure:	High Pressure, Medium Pressure, Low Pressure
Connection:	Flanged
Warranty:	18 Months

Product Description

Cast Iron Gate Valves For Industrial Chemical Industry

Gate Valve Overview

Cast iron gate valve is a type of valve used to completely open or close the flow of a medium, like water. It is mainly designed for starting or stopping flow, not for flow adjustment. There are two types of cast iron gate valves: wedge gate valves and parallel gate valves. These valves are commonly used in water pipelines.

Gate Valve Performance parameter

No.	Items	Project Name
No.	Items	150(Lb)	300(Lb)	600(Lb)	900(Lb)	1500(Lb)	2500(Lb)
1	PN (MPa)	2.0	5.0	10.0	15.0	25.0	45.0
2	Case Test Pressure (MPa)	3.0	7.5	15.0	22.5	37.5	67.5
3	High Pressure Sealing Test Pressure (MPa)	2.2	5.5	11.0	16.5	27.5	49.5
4	Max. Temperature Working Pressure (MPa)	≤2.0	≤5.2	≤10.4	≤15.6	≤25.8	≤45.8

Main Components Material

NO.	PART	MATERIAL	STANDARD
1	Body	Cast Iron	ASTM A126 CLASS B
2	Seat Rings	Cast Bronze	ASTM B62
3	Wedge Face Rings	Cast Bronze	ASTM B62
4	Wedge	Cast Iron	ASTM A126 CLASS B
5	Wedge Nut	Cast Bronze	ASTM B62
6	Stem	Brass	ASTM B16
7	Body Gasket	Graphite	NON ASBESTOS
8	Bolts	Steel	ASTM A307 B
9	Nuts	Steel	ASTM A307 B
10	Bonnet	Cast Iron	ASTM A126 CLASS B
11	Gland Follower Bolts	Steel	ASTM A307 B
12	Suffing Box Gasket	Graphite	ASTM A126 CLASS B
13	Suffing BOX	Cast Iron	ASTM A307 B
14	Paking	Graphite	NON ASBESTOS
15	Gland Follower	Ductile Iron	ASTM A536 65-45-12
16	Packing Gland	Cast Brass	ASTM B584
17	Handwheel	Cast Iron	ASTM A126 CLASS B
18	Identification Plate	Aluminium
19	Washer	Steel	ASTM A307 B
20	HandwheelNut	Steel	ASTM A307 B

Who we are

SND has been producing and selling metal goods for about 20 years.By using manufacturing techniques including sand casting, lost wax casting, lost foam casting, and precision machining, the company has been supplying goods made of materials like cast iron, steel, stainless steel, aluminum, etc. Additionally offered are surface finishing and assembly services.

Our company has successfully created products in a variety of industries, including automotive, rail transportation, agricultural machinery, chemical, energy, electricity, water, air compressor, and construction, thanks to our consistent efforts over the past few years.

Our factories' ISO9001-accredited quality control systems guarantee a consistent and dependable quality for each and every component.
Spectrometer, ultrasonic, magnetic, permeability, elongation, tensile/yield strength, and other inspections are carried out as part of routine production procedures.

American standard 300LB open rod/ dark rod gate valve

Cast Iron Gate Valves For Industrial Chemical Industry 0

American standard 600-2500LB open rod/ dark rod gate valve

Cast Iron Gate Valves For Industrial Chemical Industry 1
