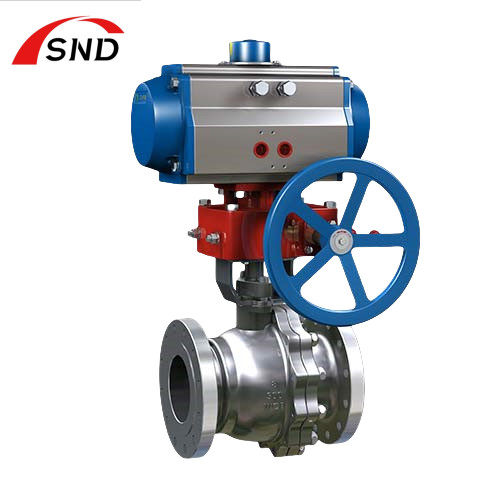

WCB Pneumatic Ball Valve Flange Connection Air Oil Water Media

Name: WCB Pneumatic Ball Valve Flange Connection Air Oil Water Media
Brand: Handan Shengnada New Material Technology Co., Ltd.
SKU: Ball Valve
Price: 500.20 USD
Availability: InStock

Product Details

Place of Origin: Zhengjiang,China

Brand Name: SND FOUNDRY

Certification: ISO / CE

Model Number: Ball Valve

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: Wood box/ wood pallet

Delivery Time: 20 days

Payment Terms: L/C, T/T

Supply Ability: 100,000 per year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                WCB pneumatic ball valve, Liquid pneumatic ball valve, Water wcb ball valve


Product Name:	WCB Pneumatic Ball Valve Flange Connection Air Oil Water Media	Key Words:	Ball Valve
Power:	Hydraulic, Solenoid, Pneumatic, Manual, Electric Power+manual	Media:	Oil, Water, Gas, Air, Liquid
Temperature:	Medium Temperature, Normal Temperature, High Temperature,Low Temperature	Pressure:	150/300/600/900/1500/2500LB
Connection:	Flanged, Welding, Thread, BSP&NPT	Application:	General, Oil And Gas, Petrochemical And Chemical Industry, Water And Wastewater,HVAC, C
Body Material:	WCB	Warrantly:	18 Months

Product Name:	WCB Pneumatic Ball Valve Flange Connection Air Oil Water Media
Key Words:	Ball Valve
Power:	Hydraulic, Solenoid, Pneumatic, Manual, Electric Power+manual
Media:	Oil, Water, Gas, Air, Liquid
Temperature:	Medium Temperature, Normal Temperature, High Temperature,Low Temperature
Pressure:	150/300/600/900/1500/2500LB
Connection:	Flanged, Welding, Thread, BSP&NPT
Application:	General, Oil And Gas, Petrochemical And Chemical Industry, Water And Wastewater,HVAC, C
Body Material:	WCB
Warrantly:	18 Months

Product Description

WCB Pneumatic Ball Valve Flange Connection Air Oil Water Media

Pneumatic Ball Valve Introduction

Pneumatic flow ball valve is a device used to control fluid, pressure and flow direction, and plays a role of cutting off in the medium. Pneumatic ball valve can completely close the gap by simply using the operation of gas rotation and the rotating fixture of the speed. The internal cavity of the valve provides a rotating speed and a straight flow channel for the medium. It is generally believed that ball valves are suitable for direct opening and closing, but recent developments have designed ball valves to have throttling and flow control functions.

Pneumatic ball valve features

Double Acting	Air to open,Air to close,air supply failure keep the current position
Spring Return	Air to open,interrupt air to open,air failure to close
Operating Media	Dry or lubricated air,or the non-corrosive gases.The maximum particle diameter must less than 30um
Air Supply Pressure	Minimum supply pressure is 2.5bar.The maximum supply pressure is 8 bar
Operating Pressure	Standard:-20~80℃
Travel Adjustment	Have adjustment range of±5° for the rotation at 0°and90°

Product Specification

Size Range	1/2"~4", DN15~100
Acting Mode	Double Acting, Spring Return (Single Acting)
Operating Pressure	1.6MPa
Air Supply Pressure	2.5 to 8 bar
Lifespan	1,000,000 (1 Million) Times
Angle of Rotation	90° ±4°
Body Material	SS304, SS316, SS316L
Sealing Material	PTFE: -30°C~180°C, PPL: -30°C~250°C
Number of Ways	2 Way
End Connection	Tri Clamp
Applicable Media	Control of Water, Air, Gas, Oil, Liquid
Optional Actuation	Handlever, Electric Actuated, or Pneumatic Actuated
Optional Accessories	Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper

Who we are

SND has been producing and selling metal goods for about 20 years.By using manufacturing techniques including sand casting, lost wax casting, lost foam casting, and precision machining, the company has been supplying goods made of materials like cast iron, steel, stainless steel, aluminum, etc. Additionally offered are surface finishing and assembly services.

Our company has successfully created products in a variety of industries, including automotive, rail transportation, agricultural machinery, chemical, energy, electricity, water, air compressor, and construction, thanks to our consistent efforts over the past few years.

Our factories' ISO9001-accredited quality control systems guarantee a consistent and dependable quality for each and every component.
Spectrometer, ultrasonic, magnetic, permeability, elongation, tensile/yield strength, and other inspections are carried out as part of routine production procedures.

WCB Pneumatic Ball Valve Flange Connection Air Oil Water Media 0

WCB Pneumatic Ball Valve Flange Connection Air Oil Water Media 1
