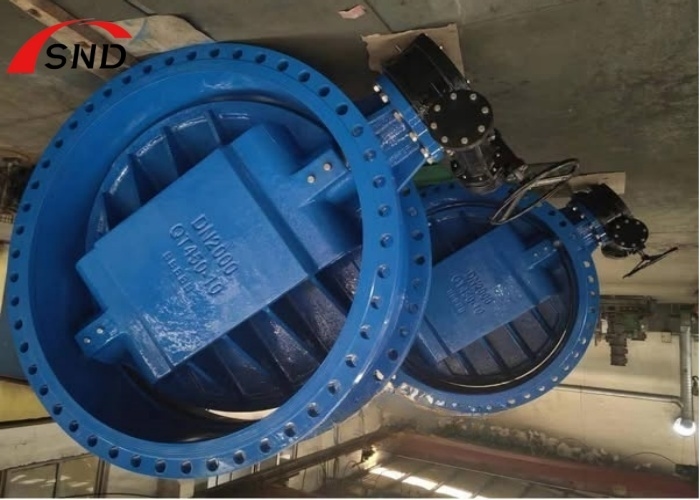

DN2000 Large Diameter Flange Butterfly Valve - Ductile Iron Material for Industrial Use

Name: DN2000 Large Diameter Flange Butterfly Valve - Ductile Iron Material for Industrial Use
Brand: Handan Shengnada New Material Technology Co., Ltd.
SKU: Butterfly Valve
Price: 75.00 USD
Availability: InStock

Product Details

Place of Origin: Zhengjiang,China

Brand Name: SND FOUNDRY

Certification: ISO / CE

Model Number: Butterfly Valve

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: $60-90/pc

Packaging Details: Wood box/ wood pallet

Delivery Time: 20 days

Payment Terms: L/C, T/T

Supply Ability: 100,000 per year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                DN2000 flange butterfly valve, ductile iron butterfly valve, industrial large diameter valve


Product Name:	DN2000 Large Diameter Flange Butterfly Valve Metal Valve Ductile Iron Material	Key Words:	Butterfly Valve
Power:	Manual, Electric Power+manual	Temperature:	Medium Temperature, Normal Temperature, High Temperature,Low Temperature
Warrantly:	18 Months	Connection:	Flanged
Application:	Chemical Industry	Media:	Oil, Water, Gas, Air, Liquid
Body Material:	Ductile Iron	Packing:	Customized Acceptable
Customized Support:	OEM	Pressure:	150/300/600/900/1500/2500LB

Product Name:	DN2000 Large Diameter Flange Butterfly Valve Metal Valve Ductile Iron Material
Key Words:	Butterfly Valve
Power:	Manual, Electric Power+manual
Temperature:	Medium Temperature, Normal Temperature, High Temperature,Low Temperature
Warrantly:	18 Months
Connection:	Flanged
Application:	Chemical Industry
Media:	Oil, Water, Gas, Air, Liquid
Body Material:	Ductile Iron
Packing:	Customized Acceptable
Customized Support:	OEM
Pressure:	150/300/600/900/1500/2500LB

Product Description

DN2000 Large Diameter Flange Butterfly Valve - Ductile Iron Material for Industrial Use

Product Specifications

Attribute	Value
Product Name	DN2000 Large Diameter Flange Butterfly Valve Metal Valve Ductile Iron Material
Key Words	Butterfly Valve
Power	Manual, Electric power+manual
Temperature	Medium Temperature, Normal Temperature, High Temperature, Low Temperature
Warranty	18 months
Connection	Flanged
Application	Chemical Industry
Media	Oil, Water, Gas, Air, Liquid
Body Material	Ductile Iron
Packing	Customized Acceptable
Customized Support	OEM
Pressure	150/300/600/900/1500/2500LB

Product Description

This large-caliber flange butterfly valve is designed for large-scale fluid transportation pipelines, including municipal water supply and drainage, water conservancy projects, and sewage treatment systems, to control the on-off and regulation of large-flow media.

Core Components & Design Features

Valve Body: Constructed from ductile iron with anti-corrosion treatment (epoxy resin coating) for high strength and excellent corrosion resistance. Suitable for large diameters (DN2000/2 meters nominal diameter) in high-flow scenarios.
Flange Connection: Features flanges at both ends for bolt-fastened pipe connections, ensuring easy installation and strong sealing performance for long-distance pipeline applications.
Valve Plate: The rotating disc (0°-90°) controls media flow. Large diameter design incorporates high-strength features (double-plate type, three-eccentric structure) for tight sealing and minimal flow resistance.
Actuator: Available in electric/pneumatic options for efficient operation, remote control, and automatic adjustment capabilities, ideal for integration with smart water systems.

Applications & Advantages

Primary Applications: Municipal water supply trunk pipes, sewage treatment plant effluent discharge, water conservancy hub flood control and drainage systems.

Key Benefits:

Large diameter accommodates extensive pipe network requirements
Flange connection ensures stable and reliable operation
Automated actuator reduces manpower requirements and enables rapid response
Enhances safety and efficiency of urban water systems

Technical Specifications

Nominal Size	DN(mm)	50~2000
Nominal Pressure	PN(Mpa)	0.6 \| 1 \| 1.6 \| 2.5 \| 4
	Strength Test	0.9 \| 1.5 \| 2.4 \| 3.75 \| 6
	Seal Test	0.66 \| 1.1 \| 1.76 \| 2.75 \| 4.4
	Gas Seal Test	0.6 \| 0.6 \| 0.6 \| 0.6 \| 0.6
	Leakage	<0.1×DNmm³/s (GB/T 13927-92 standard)
Suitable Temperature	-40℃ to 550℃
Applicable Media	Air, water, steam, gas, oil, and weak corrosive acid/alkali/salt solutions
Drive Type	Worm gear transmission, electric transmission

About Our Company

SND has been manufacturing and supplying metal products for approximately 20 years. Our expertise includes various casting techniques (sand casting, lost wax casting, lost foam casting) and precision machining, working with materials such as cast iron, steel, stainless steel, and aluminum. We also provide surface finishing and assembly services.

Our products serve multiple industries including automotive, rail transportation, agricultural machinery, chemical processing, energy, electricity, water systems, air compression, and construction.

Our ISO9001-certified quality control systems ensure consistent and reliable product quality. We conduct comprehensive inspections including spectrometer analysis, ultrasonic testing, magnetic inspection, permeability tests, and tensile/yield strength evaluations.
