Ductile Iron Rubber Disc Check Valve for Municipal Drainage Systems

Name: Ductile Iron Rubber Disc Check Valve for Municipal Drainage Systems
Brand: Handan Shengnada New Material Technology Co., Ltd.
SKU: Check Valve
Price: 75.00 USD
Availability: InStock

Product Details

Place of Origin: Zhengjiang,China

Brand Name: SND FOUNDRY

Certification: ISO / CE

Model Number: Check Valve

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: $60-90/pc

Packaging Details: Wood box/ wood pallet

Delivery Time: 20 days

Payment Terms: L/C, T/T

Supply Ability: 100,000 per year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                ductile iron check valve, rubber disc check valve, municipal drainage check valve


Produce Name:	Ductile Iron Rubber Disc Check Valve Metal Valve For Municipal Drainage	Key Words:	Check Valve, Swing Check Valve,No Return Valve
Power:	Automatic	Temperature:	≤80℃
Warrantly:	18 Months	Connection:	Flanged
Application:	General, Oil And Gas, Petrochemical And Chemical Industry, Water And Wastewater,HVAC, C	Media:	Corrosive
Body Material:	Ductile Iron	Packing:	Wood Box
Customized Support:	OEM, ODM, OBM	Pressure:	150/300/600/900/1500/2500/3000/4500LB

Produce Name:	Ductile Iron Rubber Disc Check Valve Metal Valve For Municipal Drainage
Key Words:	Check Valve, Swing Check Valve,No Return Valve
Power:	Automatic
Temperature:	≤80℃
Warrantly:	18 Months
Connection:	Flanged
Application:	General, Oil And Gas, Petrochemical And Chemical Industry, Water And Wastewater,HVAC, C
Media:	Corrosive
Body Material:	Ductile Iron
Packing:	Wood Box
Customized Support:	OEM, ODM, OBM
Pressure:	150/300/600/900/1500/2500/3000/4500LB

Product Description

Ductile Iron Rubber Disc Check Valve for Municipal Drainage Systems

Product Specifications

Attribute	Value
Product Name	Ductile Iron Rubber Disc Check Valve Metal Valve For Municipal Drainage
Key Words	Check Valve, Swing Check Valve, No Return Valve
Power	Automatic
Temperature	≤80℃
Warranty	18 months
Connection	Flanged
Application	General, Oil and Gas, Petrochemical and Chemical Industry, Water and Wastewater, HVAC
Media	Corrosive
Body Material	Ductile Iron
Packing	Wood box
Customized Support	OEM, ODM, OBM
Pressure	150/300/600/900/1500/2500/3000/4500LB

Product Description

This rubber flap check valve (also called a rubber plate check valve) belongs to the check valve family and achieves one-way water stopping by "elastic rubber flap".

Core Structure & Working Principle

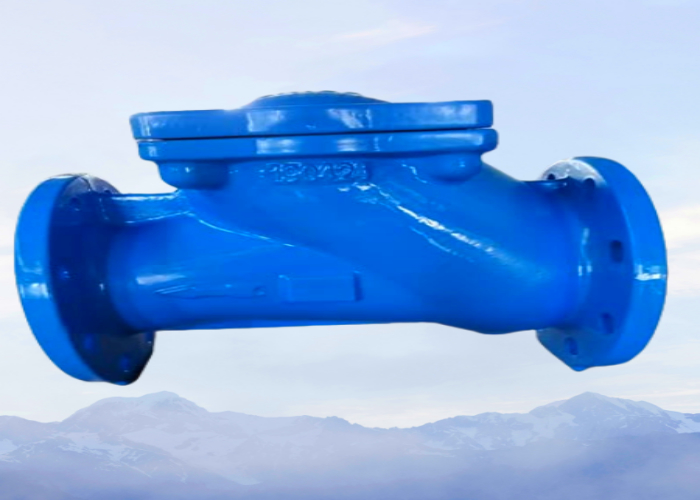

Valve Body (Blue Body):

Material: Ductile iron (surface anti-corrosion spray), pressure-resistant, corrosion-resistant, suitable for water, sewage and other media
The flanges at both ends connect the pipes for easy splicing (such as municipal sewage pipe networks, building drainage pipes)
Cast "DN100": nominal diameter 100mm (adapt to the inner diameter of the pipe to ensure the flow of the medium)

Rubber Flap ("Elastic Door" Hidden Inside):

The soul of the check valve: There are two (or more) rubber flaps in the valve body, like elastic door plates
When the medium flows forward (along the pipeline arrow), the water flow thrust opens the rubber flap and the pipeline is connected
When the medium flows back, the rubber flap relies on its own elasticity + reverse water pressure to automatically fit the valve seat, close the pipeline, and prevent backflow

No Additional Moving Parts:

Compared to the "metal valve disc + rotating shaft" of the swing check valve, the rubber flap check valve has a simpler structure - it relies on the elasticity of the rubber to open and close, and is not easy to get stuck (especially in impurity-containing media such as sewage, where impurities are not easy to entangle the rubber flap).

Application Scenarios & Value

Municipal sewage pipe network: There are many impurities in the sewage (sand, debris), and the rubber flap check valve is not afraid of blockage! For example, in the community sewage riser and the urban sewage trunk pipe, the backflow of sewage (such as the downstream pipe is blocked, the sewage backflow) will be blocked by the rubber flap to prevent the sewage from backflowing into the community and the street.
Building drainage pipe: The drainage riser of a high-rise building, the rubber flap check valve can prevent the lower sewage from flowing back to the upper floor (for example, if the drainage of the ground floor shop is blocked, the sewage may flow back from the toilet on the second floor, and it will be blocked if it is installed).
Rainwater drainage system: Urban rainwater pipe network, underground garage drainage pump outlet, rainwater pushes the rubber flap to discharge when it rains; after the pump is stopped, the rubber flap is closed to prevent rainwater from flowing back into the garage (more suitable for "dirty water, many impurities" than the swing type).

Comparison with Other Check Valves

✔️

Good anti-blocking performance: The rubber flap is soft and elastic, and the hair and mud in the sewage are not easy to get stuck in the valve flap (the swing type metal valve flap + shaft is easily entangled by debris).

✔️

Silent: When the rubber flap is closed, it fits elastically, and there is no metal collision sound (for example, when the drain pipe flows back at night, the swing check valve may "clang" and the rubber flap is quieter).

❌

Not resistant to high temperature: Rubber material is afraid of high temperature, generally suitable for ≤80℃ medium (hot water pipeline cannot be used, which will cause rubber aging).

Simply put, this is the "anti-backflow guard of the sewage pipe", which relies on the elasticity of rubber to solve the problem of "dirty water backflow + easy to clog". Especially in municipal and building drainage systems, it is the first choice to replace traditional check valves - not afraid of clogging, quiet, and easy to install!

Main Materials

Application	Chemical Industry, Petroleum and Gas
Place of Origin	Zhejiang, China
Power	Automatic
Customized Support	OEM, ODM, OBM
Temperature of Media	≤80℃
Brand Name	SND
Media	Chemical industry, oil, gas
Connection	Flange
Body Material	Ductile iron
Flow Direction	As Arrow
Structure	Swing
