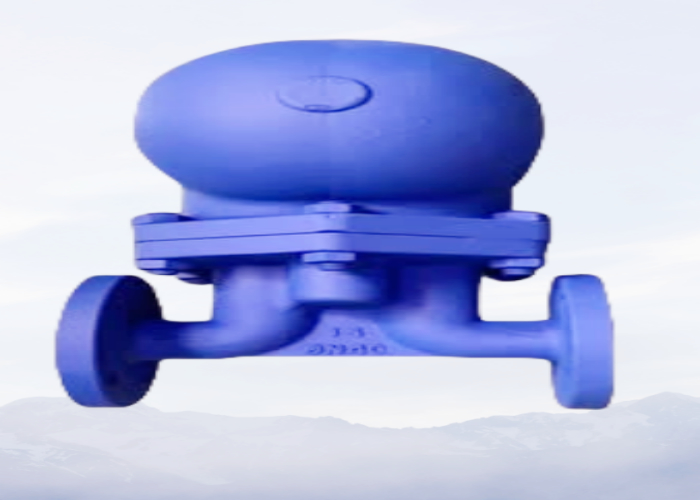

GGG40 Lever Float Steam Trap for Steam Systems - DN25, PN16

The GGG40 Lever Float Type Steam Trap is specially designed for steam systems, automatically discharging condensate while retaining steam. Below is a detailed breakdown of its structure, working principle, and technical parameters.

Valve Body (Blue Body):

• Material "GGG40": Ductile iron construction provides excellent pressure and temperature resistance, making it ideal for high-temperature, high-pressure steam systems.
• Surface Treatment: The blue surface features a high-temperature anti-corrosion coating to protect against steam condensate corrosion.
• PN16: Pressure resistance rating of 1.6MPa ensures reliable performance in standard steam system environments.
• DN25: 25mm nominal diameter makes it suitable for steam pipeline branch connections, such as those found in workshop equipment.

Float + Lever Mechanism (Internal):

• The float rises with condensate accumulation, opening the drain via the lever mechanism.
• When steam is present, the float sinks, closing the drain and preventing steam loss.
• This automatic operation ensures efficient separation of condensate from steam.

• Steam Heating Systems: Essential in thermal power plants and community heating boilers to remove condensate from pipelines before steam delivery.
• Industrial Steam Equipment: Critical for printing/dyeing factory steam irons and food factory sterilizers to ensure only dry steam is used.
• Energy Efficiency: Saves 10%-20% of steam consumption annually by preventing steam loss, reducing operational costs.

• ✔ Precise Condensate Removal: Float mechanism responds only to condensate level, unaffected by steam pressure fluctuations.
• ✔ Reliable Performance: Less prone to clogging in clean steam condensate environments compared to other trap types.
• ✔ Energy Saving: Effectively retains steam while efficiently removing condensate, optimizing system performance.
