Thermal Insulated Ductile Iron Manhole Cover Anti‑Freezing For Heating Well

Name: Thermal Insulated Ductile Iron Manhole Cover Anti‑Freezing For Heating Well
Brand: Handan Shengnada New Material Technology Co., Ltd.
SKU: SND Manhole Cover
Price: 70.00 USD
Availability: InStock

Product Details

Place of Origin: Handan, China

Brand Name: SND Foundry

Certification: ISO / CE

Model Number: SND Manhole Cover

Payment & Shipping Terms

Minimum Order Quantity: 10 tons

Price: $50-90/t

Packaging Details: wood pallet/ bulk

Delivery Time: 45 days

Payment Terms: L/C, T/T

Supply Ability: 20000 tons per year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                Thermal insulated ductile iron manhole cover, Anti-freezing heating well cover, Ductile iron manhole cover with warranty


Product Name:	D400 Cast Iron Round Manhole Cover With Snap Ring And Lock	Class:	D400
Pattern:	As Drawing	Paint:	Spray Paint,
Standard:	EN124	Material:	Ductile Iron
Insulation Layer:	XPS Foam	Function:	Thermal Insulation, Anti‑freezing

Product Name:	D400 Cast Iron Round Manhole Cover With Snap Ring And Lock
Class:	D400
Pattern:	As Drawing
Paint:	Spray Paint,
Standard:	EN124
Material:	Ductile Iron
Insulation Layer:	XPS Foam
Function:	Thermal Insulation, Anti‑freezing

Product Description

Our insulated ductile iron manhole cover is specially designed for heating wells, thermal pipeline wells, sewage wells and municipal projects. Equipped with high‑performance XPS foam thermal‑insulation layer, it effectively prevents heat loss and avoids freezing in cold weather. Manufactured from high‑strength ductile iron, the product meets EN124‑2 European standard, bears heavy‑duty load, anti‑corrosion and long service life. Custom dimensions, load class, surface logo and drawing‑based production are all acceptable.
Main Technical Parameters

Item	Specification
Material	Ductile Iron (GGG50‑7)
Insulation Layer	XPS Foam board
Standard	EN124‑2
Load Class	B125 / C250 / D400 optional
Size	Round / Square, customized as customer drawing
Surface Treatment	Black bitumen spray paint
Function	Thermal insulation, anti‑freezing, anti‑theft
Logo	Custom embossed logo available
Packing	Plastic film wrapped on wooden pallet

Features
High‑strength ductile iron body: High pressure resistance, impact resistance, suitable for road, driveway and municipal sites.
XPS thermal insulation layer: Excellent heat preservation performance, reduce heat dissipation, prevent well internal equipment from freezing in low‑temperature environment.
Strictly follow EN124‑2 standard: Load capacity fully tested, stable quality for export projects.
Anti‑theft design: Can be equipped with lock device as requirement.
Flexible customization: Support different sizes, shapes, load grades, emboss customer brand or project name on cover surface.

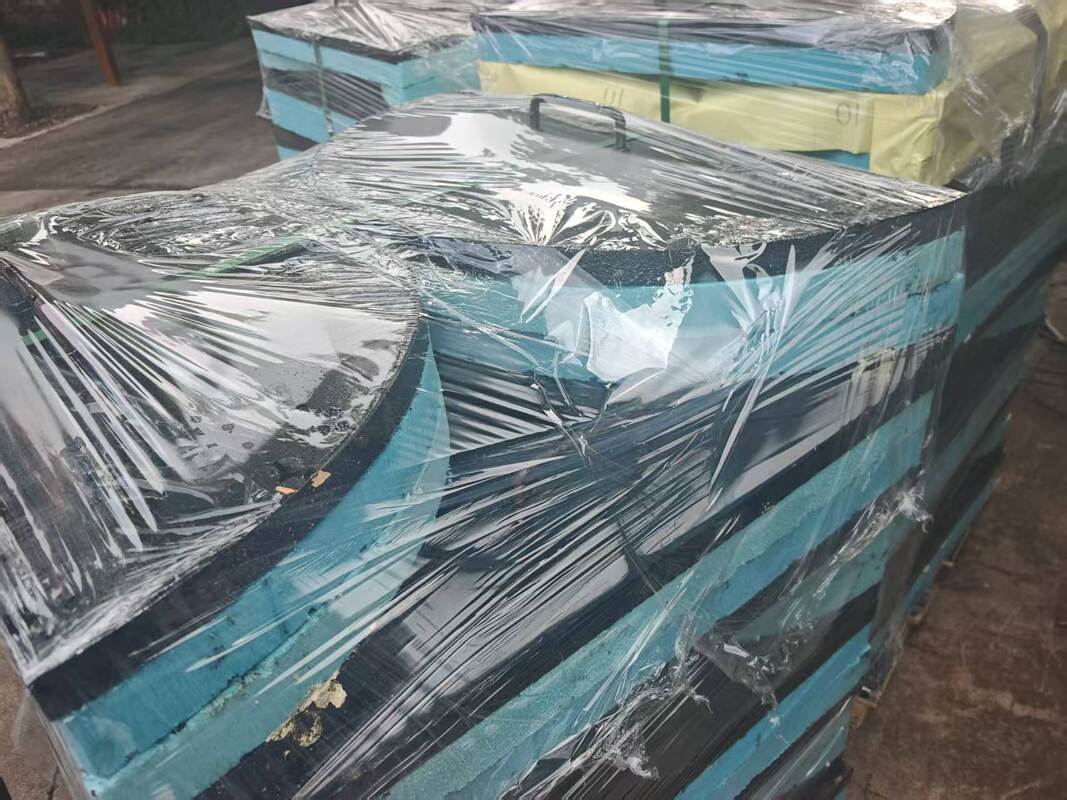

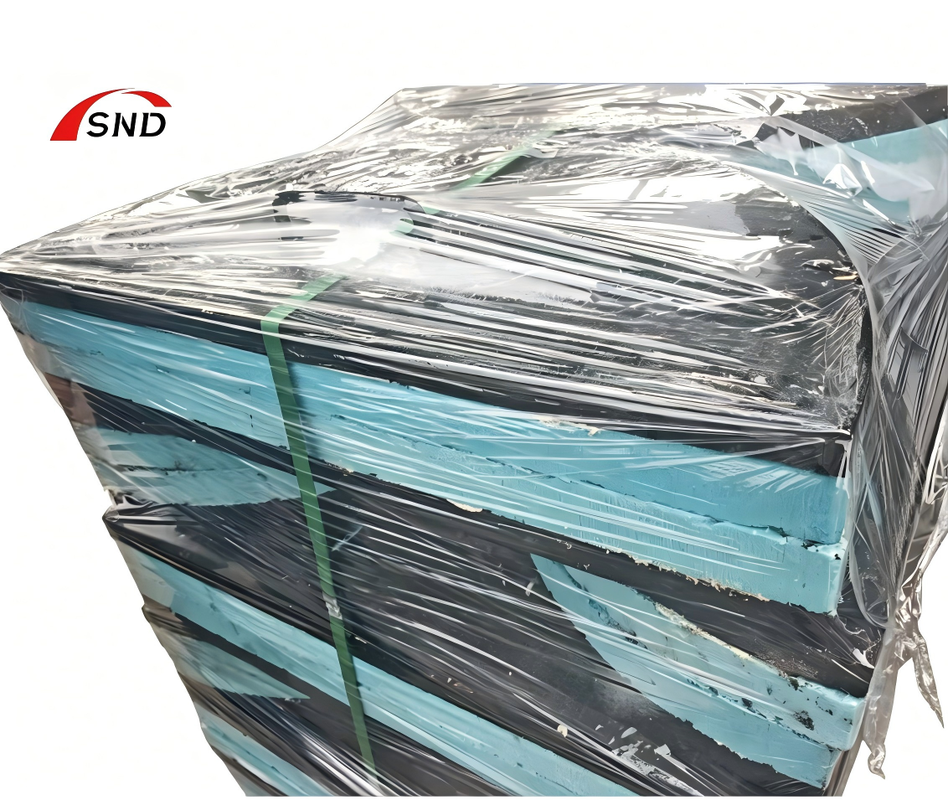

Safe export packing: Wrapped by stretch film and loaded on wooden pallets, avoid damage during sea transportation.
Application Scenarios
‑ Heating power well
‑ Sewage & drainage well
‑ Municipal engineering project
‑ Community road, park, factory zone
‑ Cold‑area underground pipeline well
Our Service
‑ Sample can be provided for quality checking
‑ Produce strictly according to customer drawings or requirements
‑ Provide related material certificate
‑ Professional packing for container shipment
‑ Quick reply for all your inquiries
